General RC E-Heli Talk General discussion forum for electric powered rc helis.

Show off your sweet helis

Old 02-12-2009, 06:28 AM
  #226
wickedwelder
avaition fanatic

Join Date: Feb 2009
Location: escondido ca.
Posts: 32
Default

heres 2 of my choppers my blade cx-2 with the b hawk body and my mcx with a walkera 4g3 body
Attached Thumbnails Click image for larger version

Name:	mcx  with new body 005.jpg
Views:	286
Size:	94.0 KB
ID:	93439   Click image for larger version

Name:	mcx  with new body 003.jpg
Views:	323
Size:	76.3 KB
ID:	93440   Click image for larger version

Name:	mcx 004.jpg
Views:	283
Size:	139.3 KB
ID:	93441   Click image for larger version

Name:	mcx 003.jpg
Views:	267
Size:	139.0 KB
ID:	93442   Click image for larger version

Name:	heli - pics 002.jpg
Views:	287
Size:	138.7 KB
ID:	93443

Click image for larger version

Name:	heli - pics 006.jpg
Views:	272
Size:	134.3 KB
ID:	93444
wickedwelder is offline
Old 02-12-2009, 05:01 PM
  #227
Crash9
www.FPVpilot.com

Crash9's Avatar

Join Date: Apr 2006
Location: Lake Elsinore, Ca.
Posts: 892
Default Brushless Blade CX2

I finished this conversion last week. I love the it way it flies and awesome power. I loaded it up with some FPV gear. I got it buzzing around my garage. Really simple set up and flies a lot better then stock and all I can say is it's bada$$. Got a few flights in and I'm under the impression that this will be a good FPV heli for learning, indoor FPV flights, outdoor close range FPV flights and I think for me it will allow me to fly over my backyard RC track without having to have everyone clear the area like they do when my 450 or 600 spools up .


My Brushless CX is weighing in at 350 grams wet (RTF). Here's the Set-up

1 1.3ghz 300mw Hobbywireless FPV system
1 Custom Crash9 6160T6 .50 aluminum frame with landing skids/tail boom
2 Castle Creation Thunderbird 9
1 900 mah 3s lipo for heli power. 7-9 minute flights so far.
1 400 mah 3s lipo for seperate video power. May remove and run off Main batt to save weight.
2 C-10 Brushless outrunners from Strong RC. Thanks Don.
1 Blade CX complete frame, servos, innner/outer main shafts, etc..
1 Spektrum 6100 RX, TX programed for plane
1 E-flite heading hold gyro
1 Vasman extended inner shaft

I also removed the FPV gear and used a 3s 2100 lipo for a 20+ min flight. 298 grams RTF.
Attached Thumbnails Click image for larger version

Name:	IMG_0303.jpg
Views:	260
Size:	118.7 KB
ID:	93448   Click image for larger version

Name:	IMG_0306.jpg
Views:	257
Size:	127.2 KB
ID:	93449   Click image for larger version

Name:	IMG_0305.jpg
Views:	244
Size:	81.8 KB
ID:	93450
Crash9 is offline
Old 02-12-2009, 05:11 PM
  #228
Crash9
www.FPVpilot.com

Crash9's Avatar

Join Date: Apr 2006
Location: Lake Elsinore, Ca.
Posts: 892
Default

Pro-Line Attack canopy on my T-rex.
Attached Thumbnails Click image for larger version

Name:	Trex450AttackPL (9).jpg
Views:	360
Size:	195.2 KB
ID:	93451   Click image for larger version

Name:	Trex450AttackPL (1).jpg
Views:	344
Size:	93.7 KB
ID:	93452   Click image for larger version

Name:	attack - 6.jpg
Views:	264
Size:	98.3 KB
ID:	93453   Click image for larger version

Name:	attack - 9.jpg
Views:	288
Size:	87.8 KB
ID:	93454
Crash9 is offline
Old 02-12-2009, 11:50 PM
  #229
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

Well, Here's my CopterX 450, which I just sold...
and a picture of my Trex600,
I don't have any pictures of my other ones... so I'll try to get pics of them soon....

total heli's

Trex500
Trex600
Walkera 4g3
Walkera 4#3
Walkera 5g6
HK500 (hobbycity 500)

SK


Last edited by ministeve2003; 05-02-2009 at 07:29 AM.
ministeve2003 is offline
Old 02-12-2009, 11:58 PM
  #230
BoysToys
Member

BoysToys's Avatar

Join Date: Mar 2008
Location: Bakersfield, CA
Posts: 198
Default

Here is a recent pic of my heli collection. From left to right-

T-Rex 600cf on 8S
T-Rex 500cf
MSH Protos
T-Rex 450 se V2

BoysToys is offline
Old 02-13-2009, 01:24 AM
  #231
Figure.N9ne
Super Contributor

Figure.N9ne's Avatar

Join Date: Jan 2006
Location: Miami, FL
Posts: 1,138
Default

Originally Posted by BoysToys View Post
Here is a recent pic of my heli collection. From left to right-

T-Rex 600cf on 8S
T-Rex 500cf
MSH Protos
T-Rex 450 se V2

nice line up!

between the trex500 and msh, which do you prefer?
Figure.N9ne is offline
Old 02-13-2009, 03:00 AM
  #232
BoysToys
Member

BoysToys's Avatar

Join Date: Mar 2008
Location: Bakersfield, CA
Posts: 198
Default

Originally Posted by Yaniel View Post
nice line up!

between the trex500 and msh, which do you prefer?
Thanks for the compliment. I am pretty happy with my choices in helis so far.

As for the 500 vs. the Protos. I have only flown the 500 twice since building the Protos. My Protos weighs in at 270g lighter than my 500. Because of this, it is much quicker and seems to have a lot more pop in the collective. I also have a nicer gyro on the Protos so that also helps. I am running a Spartan DS760 on the Protos and a Gy401 on the 500. If I don't start flying the 500 more it will likely go up for sale in the future to help fund a .90 sized nitro machine.

My favorite right now is my 8S powered 600. I am running a Scorpion HK-4025 890kv motor with a CC HV-85 on 8S 25C 3700mah Outrage packs. This thing peaks at 2900watts! It is pretty much unboggable at 2150rpm.

I just got some Radix blades for my 600 so I can see how they compare to the VBlades that I am currently using. I also got a set of the Youngblood Super Stubz padddles. Unfortunately, the weather has been bad out here in California for the last two weeks and I have not had a chance to test them out yet.

BoysToys is offline
Old 02-24-2009, 01:39 AM
  #233
David M
Member

Join Date: Oct 2007
Posts: 25
Default

There's some really top hardware on here....

I'm going to bring you all back down to earth with the little heli that started it all off nearly 10 years ago...the Piccolo.

I still fly mine (now on 2S lipos instead of the 8-9 nimh AAA's). It has a lot of mods on it for exceptable forward flight performance, but I just enjoy stooging it around and can land it on a sofa arm quite easily.

Here's mine with the Hughes body conversion fitted...
Attached Thumbnails Click image for larger version

Name:	Piccolo Hughes by fireplace.JPG
Views:	242
Size:	46.6 KB
ID:	94697   Click image for larger version

Name:	Piccolo Hughes in bedroom.JPG
Views:	393
Size:	140.3 KB
ID:	94698
David M is offline
Old 03-03-2009, 12:57 PM
  #234
b1bman
Member

b1bman's Avatar

Join Date: Dec 2007
Location: colorado
Posts: 171
Default trex 450 tail light blades

Hi every one I just got into night flying and wanted to show off my tail light blades I made have a look at this video and let me know what you think


http://www.youtube.com/watch?v=CottYpM83Ho
Attached Thumbnails Click image for larger version

Name:	DSC00893.JPG
Views:	208
Size:	92.0 KB
ID:	95328   Click image for larger version

Name:	DSC00897.JPG
Views:	233
Size:	108.7 KB
ID:	95329   Click image for larger version

Name:	DSC00900.JPG
Views:	216
Size:	58.6 KB
ID:	95330
b1bman is offline
Old 03-03-2009, 04:37 PM
  #235
MaxAdventure
AMA 198798

MaxAdventure's Avatar

Join Date: Aug 2007
Location: Near Mork and Mindy
Posts: 1,110
Default

Originally Posted by BoysToys View Post
My favorite right now is my 8S powered 600. I am running a Scorpion HK-4025 890kv motor with a CC HV-85 on 8S 25C 3700mah Outrage packs. This thing peaks at 2900watts! It is pretty much unboggable at 2150rpm.
Sounds very similar to my ePantera.

(roughly) 2900W/30V = 97 Amps how often do you hit that with your HV85? I've peaked mine at 107Amps, no smoke. However, I had a gear mesh issue and yesterdays flight peaked at about 67A. I run in the 35-45 amp range however I'm also running around 1800 RPM on the main.

Do you have any logs/vids? I'd love to see the info on an 8S 600E!
MaxAdventure is offline
Old 03-05-2009, 01:52 AM
  #236
PlatinumX
Member

PlatinumX's Avatar

Join Date: Jan 2009
Location: Middle River, Maryland
Posts: 25
Default

I reconize those from this months issue of RC Heli! Nice lineup!



Originally Posted by BoysToys View Post
Here is a recent pic of my heli collection. From left to right-

T-Rex 600cf on 8S
T-Rex 500cf
MSH Protos
T-Rex 450 se V2

PlatinumX is offline
Old 03-05-2009, 06:40 PM
  #237
Crash Test Dummy
Super Contributor

Crash Test Dummy's Avatar

Join Date: Aug 2005
Location: Sugar Grove
Posts: 2,748
Default

My Trex got a new Gyro this year. Ministeve gave me a sweet deal on a 401 he had, thanks again Steve!! It has been to windy too get a good tunning session in with the new gyro but better days are ahead. I painted up a new [align-clear] canopy for her too. It is black on the inside, I used some of the factory stickers and Orange covering. My camera batts are dead so I had to use my mini vodeo camera to get a picture. It's a 1 sec. video, the batteries are dead in the mini video camera too, AUGH!!!! I can't find even 1 charged AA battery in this house!!! You can just hit pause to view it as a photo.

[media]http://www.youtube.com/watch?v=Bry5Klg4c0I[/media]

CTD
Crash Test Dummy is offline
Old 03-05-2009, 07:15 PM
  #238
ministeve2003
Class Clown

ministeve2003's Avatar

Join Date: Sep 2007
Location: Montclair, California
Posts: 4,472
Default

-
Originally Posted by Crash Test Dummy View Post
My Trex got a new Gyro this year. Ministeve gave me a sweet deal on a 401 he had, thanks again Steve!! It has been to windy too get a good tunning session in with the new gyro but better days are ahead. I painted up a new [align-clear] canopy for her too. It is black on the inside, I used some of the factory stickers and Orange covering. My camera batts are dead so I had to use my mini vodeo camera to get a picture. It's a 1 sec. video, the batteries are dead in the mini video camera too, AUGH!!!! I can't find even 1 charged AA battery in this house!!! You can just hit pause to view it as a photo.

[media]http://www.youtube.com/watch?v=Bry5Klg4c0I[/media]

CTD
I bet the genius that came up with AA battery's also new what kinda annoyance they would end up being...LOL....

SK

Last edited by ministeve2003; 05-02-2009 at 07:30 AM.
ministeve2003 is offline
Old 03-06-2009, 02:30 AM
  #239
BoysToys
Member

BoysToys's Avatar

Join Date: Mar 2008
Location: Bakersfield, CA
Posts: 198
Default

Originally Posted by MaxAdventure View Post
Sounds very similar to my ePantera.

(roughly) 2900W/30V = 97 Amps how often do you hit that with your HV85? I've peaked mine at 107Amps, no smoke. However, I had a gear mesh issue and yesterdays flight peaked at about 67A. I run in the 35-45 amp range however I'm also running around 1800 RPM on the main.

Do you have any logs/vids? I'd love to see the info on an 8S 600E!
I don't have any recent logs. I am not obsessed with data logging and tend to only run my Eagletree when testing a new setup or to diagnose a problem. I have hit 100A+ many time with my old 6S/Neu 1515/2.5D setup. I am running my 8S setup using the Castle 2.0 Firmware's RPM Governor. Normal is set at 1800, idle 1 is 2150, and idle 2 is 2250. I typically never use normal or idle 2. I don't have any videos since I am just your average sport/ wannabe 3D pilot. I do need to run the logger and see what the system is pulling during some tick/tocks. I have family obligations this weekend so I won't be doing any flying. I will take the laptop out to the field next weekend and try to remember to get data from a more aggressive flight.

Here are a couple of logs from last December when I ran the 8S setup for the first time. The spikes you see are punchouts and the long peak is a funnel. You can see that the system was drawing 80-90A for a good 10 seconds during the funnel and the three spikes are all over 105A.



BoysToys is offline
Old 03-06-2009, 03:00 AM
  #240
aramsdell
Member

aramsdell's Avatar

Join Date: May 2006
Posts: 213
Default

upgraded my Swift 16 with a Scorpion 4025-1100 6S 'Rex motor and RT 560's. WOT no gov get 2370 on fresh pack ! Absolute insanity. Full metal head and Tail gearbox. Like yours it is capable of 2200 continuous.

I was running the Century 600+ and peaking at 123 amps. Motor eventually failed. Wonder why.

Now it is virtually unboggable when in gov mode.

http://www.helifreak.com/album.php?albumid=1994&pictureid=14558I
aramsdell is offline
Old 03-06-2009, 02:46 PM
  #241
MaxAdventure
AMA 198798

MaxAdventure's Avatar

Join Date: Aug 2007
Location: Near Mork and Mindy
Posts: 1,110
Default

Originally Posted by BoysToys View Post
I don't have any recent logs. I am not obsessed with data logging and tend to only run my Eagletree when testing a new setup or to diagnose a problem.
I would agree, once you have it dialed in, why risk the hardware?

Originally Posted by BoysToys View Post
The spikes you see are punchouts and the long peak is a funnel. You can see that the system was drawing 80-90A for a good 10 seconds during the funnel and the three spikes are all over 105A.
Looks nice! I'm impressed with your packs ability to hold the voltage. I had a thermal probe on my HV85 when I was hitting 90A-100A and it never went over (if I recall) 115F - I love that ESC

Thanks for sharing!
MaxAdventure is offline
Old 03-15-2009, 08:56 PM
  #242
BoysToys
Member

BoysToys's Avatar

Join Date: Mar 2008
Location: Bakersfield, CA
Posts: 198
Default

I took the 600 out again yesterday. This time I hooked up the Eagle Tree and flew a typical flight. I did not do any long hard punch outs to see what it would spike at but rather just flew around and had fun. I am also running different blades than I was in the other graphs. I have switched from 600mm VBlades to 600mm CY Radix with CY Super Stubz paddles. The new paddles really sped up my cyclic response and I highly recommend them. I got my blades and paddles direct from Curtis Youngblood. They are cosmetic blems and I was able to get the mains for $62 and the paddles for $23.

I let one of my flying buddies fly the 600 and he is hooked. I think he will be showing up to the field in the next couple of weeks with the same power system in his 600.

Ayway here are the graphs, enjoy. Scorpion HK-4025 890kv, Castle HV-85, Outrage 25C 8S 3700mah, Radix 600.
Attached Thumbnails Click image for larger version

Name:	600 Volts Amps 3-14-09.jpg
Views:	160
Size:	152.2 KB
ID:	96346   Click image for larger version

Name:	600 Watts 3-14-09.jpg
Views:	165
Size:	164.4 KB
ID:	96347   Click image for larger version

Name:	600 Dash Board 3-14-09.jpg
Views:	180
Size:	83.3 KB
ID:	96348
BoysToys is offline
Old 03-15-2009, 11:30 PM
  #243
jasmine2501
Custom User Title

jasmine2501's Avatar

Join Date: Jul 2007
Location: Lakewood, CO
Posts: 2,373
Default

Photos of the new lineup - only one 'old' heli here - the Blade 400 just keeps on going
Attached Thumbnails Click image for larger version

Name:	Hpim0584.jpg
Views:	245
Size:	216.6 KB
ID:	96364   Click image for larger version

Name:	Hpim0586.jpg
Views:	345
Size:	194.6 KB
ID:	96365
jasmine2501 is offline
Old 05-02-2009, 05:16 AM
  #244
voodootl
voodootl

Join Date: May 2009
Location: arkansas
Posts: 1
Default sweet helis for sure.....keh 450p

Hey Guys... there alot of nice heli owners on this board! I am new here and new to ccpm's, but anyway here is my first 450 ccpm... its a chinese made KEH 450p, metal head and tail, brushless 3800 and 2.4g TX/RX
Attached Thumbnails Click image for larger version

Name:	101_0428.jpg
Views:	210
Size:	119.0 KB
ID:	100110   Click image for larger version

Name:	my 450 naked.jpg
Views:	243
Size:	149.3 KB
ID:	100111   Click image for larger version

Name:	my 450 cf 2.jpg
Views:	211
Size:	108.3 KB
ID:	100112
voodootl is offline
Old 05-04-2009, 01:02 PM
  #245
Cpt.TYPHOON
Member

Join Date: Mar 2007
Posts: 63
Default

Nice set's of helicopters Buddies...
Not shure I'm at a right place to show my ...
Well here it goes...

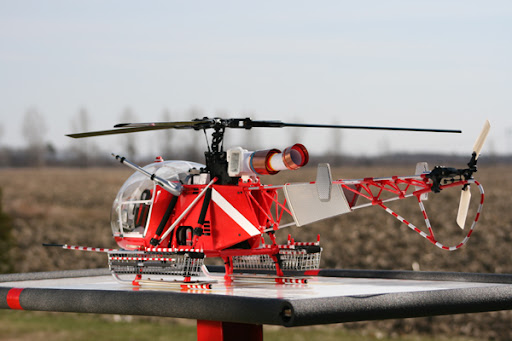

LAMA SA-315B (SAR) CoastGuard Master Duty Helicopter
This flying machine of my will be powered by a electric conversion on a 50 size motor. Will this month do the final purchase to complet.

LAMA SA-315B (SAR) COASTGUARD MASTER DUTY HELICOPTER:
http://picasaweb.google.com/LAMAHORS...utyHelicopter#

Cpt.TYPHOON is offline
Old 06-20-2009, 05:08 AM
  #246
Trickycopter
New Member

Trickycopter's Avatar

Join Date: Apr 2008
Location: Tulsa, Oklahoma
Posts: 7
Default

Here is my pride of the sky

Click image for larger version

Name:	DSC01360.JPG
Views:	192
Size:	199.3 KB
ID:	103745

Click image for larger version

Name:	DSC01366.JPG
Views:	167
Size:	145.0 KB
ID:	103746

Click image for larger version

Name:	DSC01367.JPG
Views:	145
Size:	155.0 KB
ID:	103747

Click image for larger version

Name:	DSC01364.JPG
Views:	165
Size:	152.0 KB
ID:	103748
Trickycopter is offline
Old 10-01-2009, 04:57 PM
  #247
wrather1
Member

wrather1's Avatar

Join Date: Jul 2009
Location: Dallas, Texas
Posts: 64
Default

Originally Posted by Cpt.TYPHOON View Post
LAMA SA-315B (SAR) CoastGuard Master Duty Helicopter
This flying machine of my will be powered by a electric conversion on a 50 size motor. Will this month do the final purchase to complet.
Did you use a V-bar or some other flybarless system for the headgear? That is the most incredibly detailed model I have ever set eyes on - is it operational yet?

DW
wrather1 is offline
Old 10-01-2009, 06:19 PM
  #248
Buzz
Pcar

Join Date: Aug 2007
Location: Daytona Beach, FL
Posts: 1,747
Default

Here's my AH-6 "Little Bird". This is a huge scale model of the original bird...
Check out the deminsions and pictures. 5 blade head, Scorpion motor....

Scale Master Giant Scale RC Helicopter AH-6 "Little Bird"
This custom built RC helicopter is 95% complete!
What this Helicopter is NOT:
- This Scale AH-6 is not a "Kit" you can buy in a store
- Not small
- Is not a 1/6 Ultimate Soldier AH-6 conversion
- Is not made and built with cheap materials.
This bird is the ONLY one ever built like this.

She is huge in size: (one of the pics below shows a 1/18th scale AH-6 next to this beast so you can see the difference)
Length - 56 inches
Width - 26 inches
Height - 21 inches
Specs:
- Heli body is made from new gen fiberglass, and composites made in Germany.

- All CNC medal scale 5 blade head, swashplate. and follower
- Corbon-fiber core mechanics from Align (T-rex 600), torque tube mod
- All digital Futaba servos (4 total)
- Scorpion 740KV brusless motor 8S-12S capable
- 80 Amp (HV) High Volt Castel Creation Speed Control
- T-rex 700 mod for CCPM for no swashplate guide
- 7 CH Sectrum 2.4gHz receiver
- Full complete NAV, beacon, and LL light set up from XLIGHTS
- Scale detail cockpit and crew
- 2 Rocket pods and cannons

Heres what I need to complete the build

- Four, 4S 4000mAh Lipo's 2 in series (8S), and then the two series packs ran in parallel (8000mAn)
- Main blades
- SK-360 mixing system (optional)
- All Gyros
- K10364A 6A External BEC RCE-B6X



Should be flight ready in about a month.



Here is a video showing the nav lights....



[media]http://www.youtube.com/watch?v=ktMsiJvpi2M&feature=player_embedded[/media]Enjoy!

Buzz
Attached Thumbnails Click image for larger version

Name:	ah6big.jpg
Views:	241
Size:	208.6 KB
ID:	110314   Click image for larger version

Name:	ah6big2.jpg
Views:	223
Size:	184.6 KB
ID:	110315   Click image for larger version

Name:	ah6big3.jpg
Views:	259
Size:	219.7 KB
ID:	110316   Click image for larger version

Name:	ah6big8.jpg
Views:	252
Size:	195.2 KB
ID:	110317   Click image for larger version

Name:	ah64big.jpg
Views:	203
Size:	152.2 KB
ID:	110318

Click image for larger version

Name:	ah66big.jpg
Views:	225
Size:	194.9 KB
ID:	110319   Click image for larger version

Name:	ah69big.jpg
Views:	247
Size:	239.0 KB
ID:	110320
Buzz is offline
Old 10-01-2009, 08:32 PM
  #249
Moxus
Gremlin

Join Date: Jun 2008
Posts: 641
Default

here is mine 2 copters.
e-sky lama v4 and e-sky belt cp v2.

the belt is less than 3 hours old, and i already managed to screw it up, because of embarrassing pilot error

the lama v4 is much more than 3 hours old, and is badly screwed up because of many instances of pilot bravery


so because that the pilot bravery quickly exceeded the helicopter capabilities (and pilot capabilites?) on the lama, i ordered the belt cp2.
when trying to fly the belt for the first time, about 1 hour and 30 minutes ago i quickly learned the hard way that things have changed since the last time i had a "proper" heli (hirobo shuttle sxx).
main problem was probably that i had mystical gyro settings on the radio, wich just wasnt there when i had the shuttle. old trusty shuttle: reciever on = gyro on.
clearly not so on the belt ^^


Moxus is offline
Old 10-01-2009, 09:31 PM
  #250
Buzz
Pcar

Join Date: Aug 2007
Location: Daytona Beach, FL
Posts: 1,747
Default

Moxus, ... you should try out the "Big Lama" contra rotating helicopter. I have a couple of them and they're great for flying around the yard. I use it mostly to keep my reactions sharp and... and you know that the more you fly, the faster you develop orientation. I do this every evening.....

[media]http://www.youtube.com/watch?v=0RDQx84blgM[/media]
Buzz is offline

Quick Reply: Show off your sweet helis


Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.

Page generated in 0.13719 seconds with 42 queries
