EPP F-22 Scratch build, first pusher jet.

Old 12-04-2011, 01:15 AM
  #1
Timewarp
Member
Thread Starter

Timewarp's Avatar

Join Date: Dec 2011
Location: Stationed with my family in Kaiserslautern, Germany
Posts: 46
Default EPP F-22 Scratch build, first pusher jet.

Hi everyone,

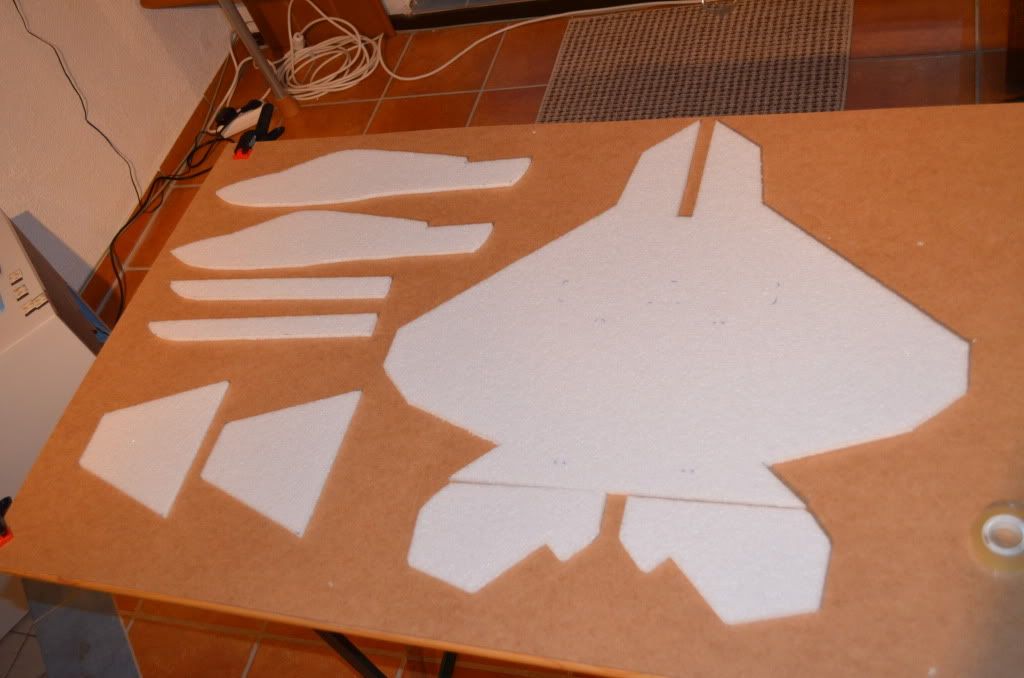

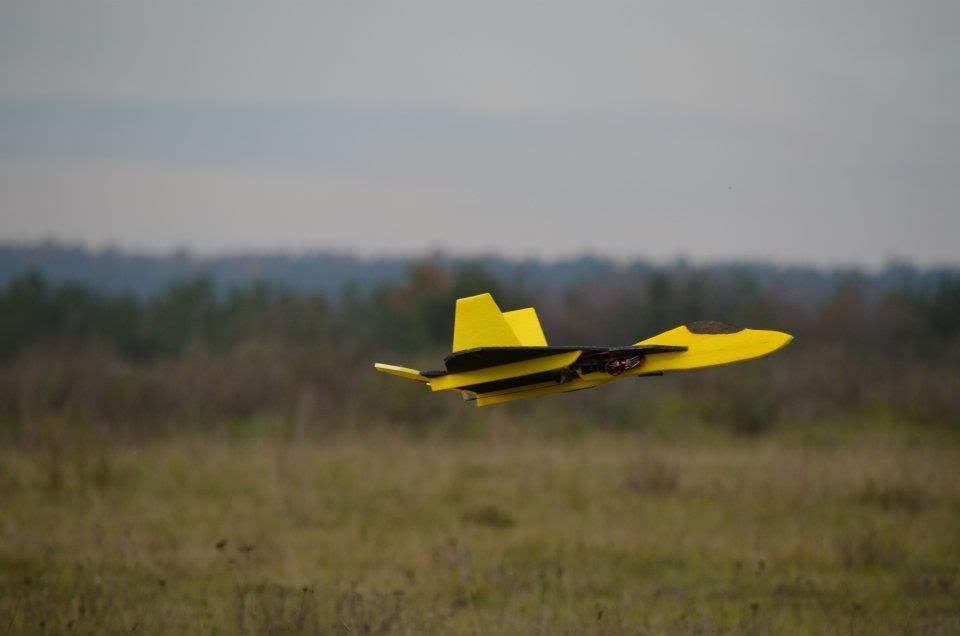

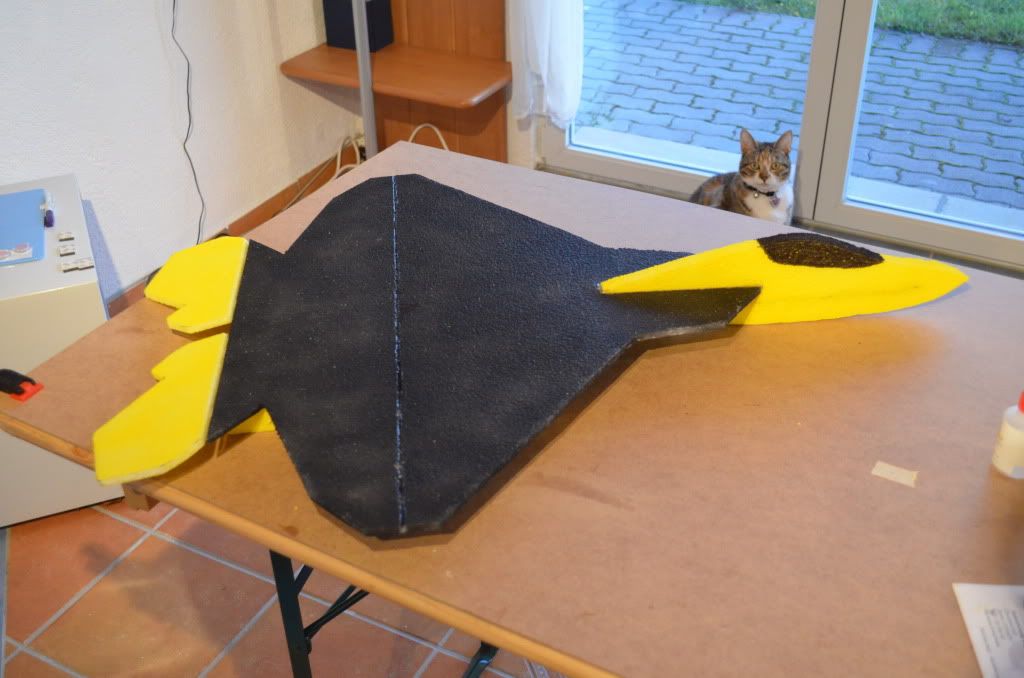

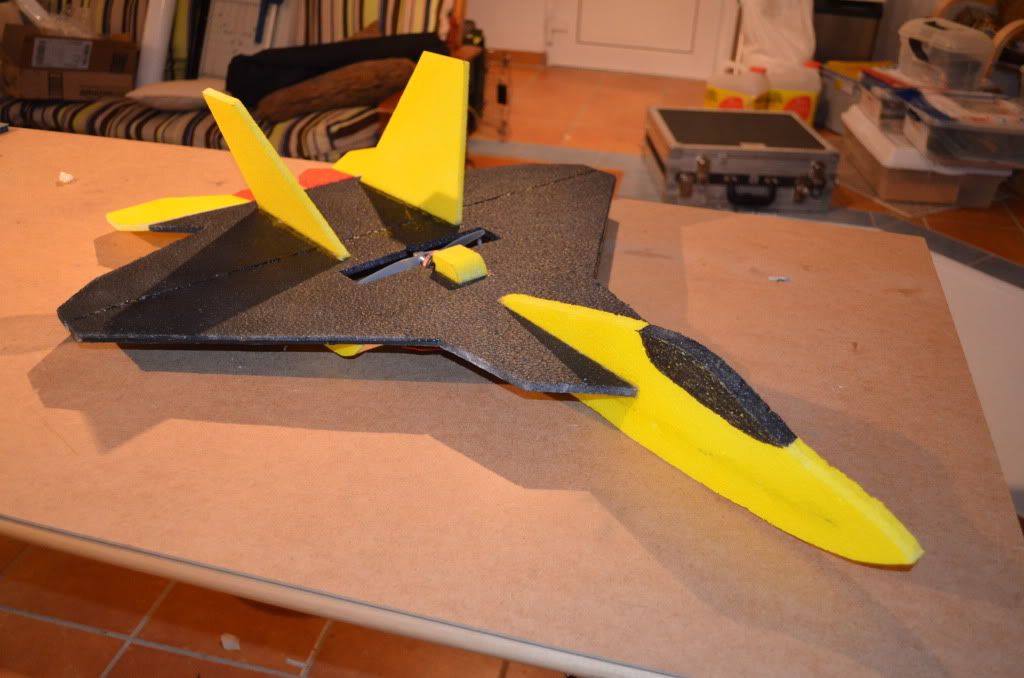

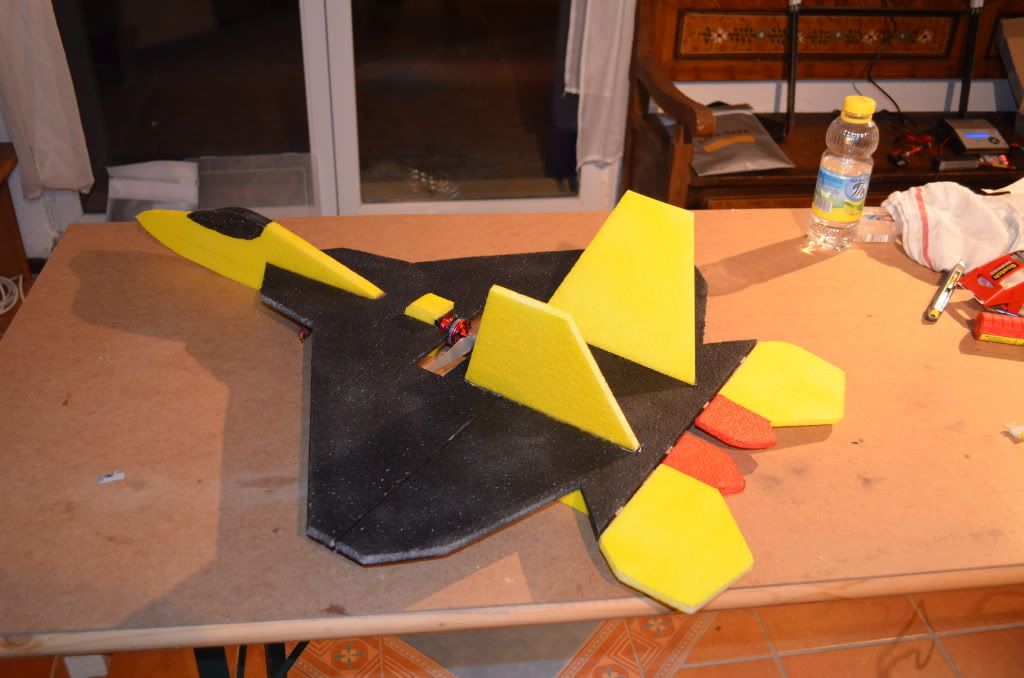

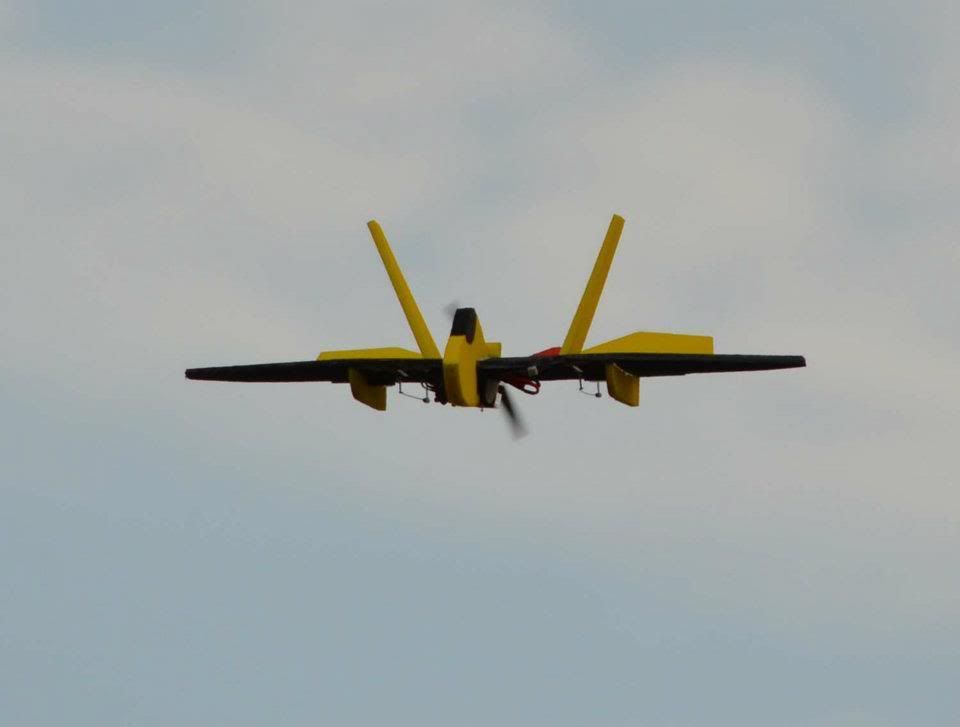

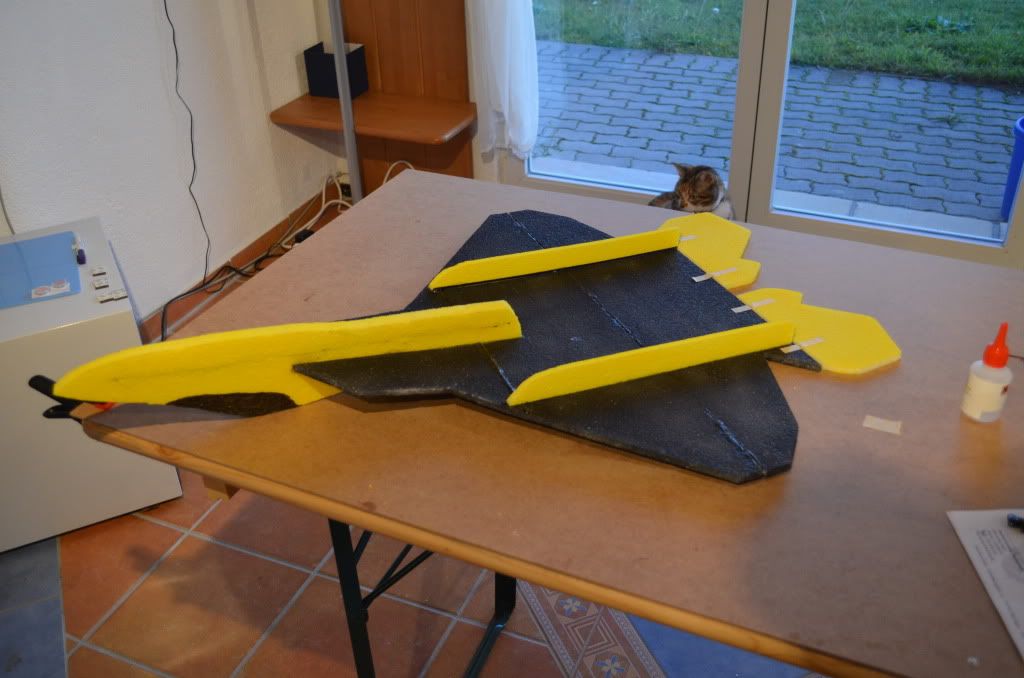

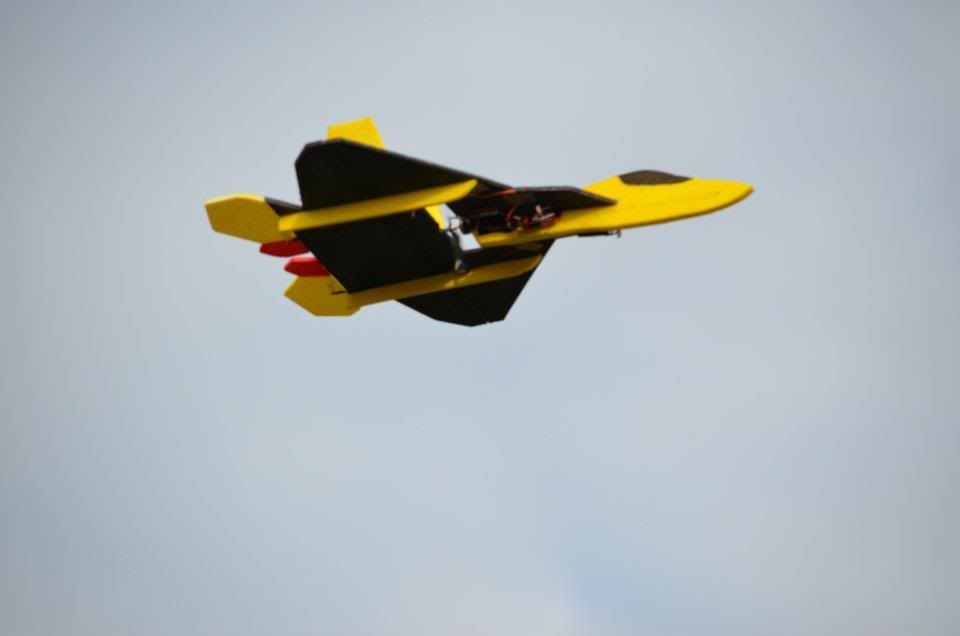

Here are a few pictures of the EPP F-22 Raptor that I built from scratch using EPP foam. This is my very first scratch build! So I was more than a little apprehensive at the start of the build but all in all it went pretty seamless, no major mishaps other than I forgot to add the carbon rod between the fuselage half's. I had to do a follow up procedure and cut it back open to add the carbon rod...a little glue and some color and you don't really notice the slice. I maidened her a few days ago when the weather was nice and can't complain, she flew as expected, a fun pusher jet for sure.

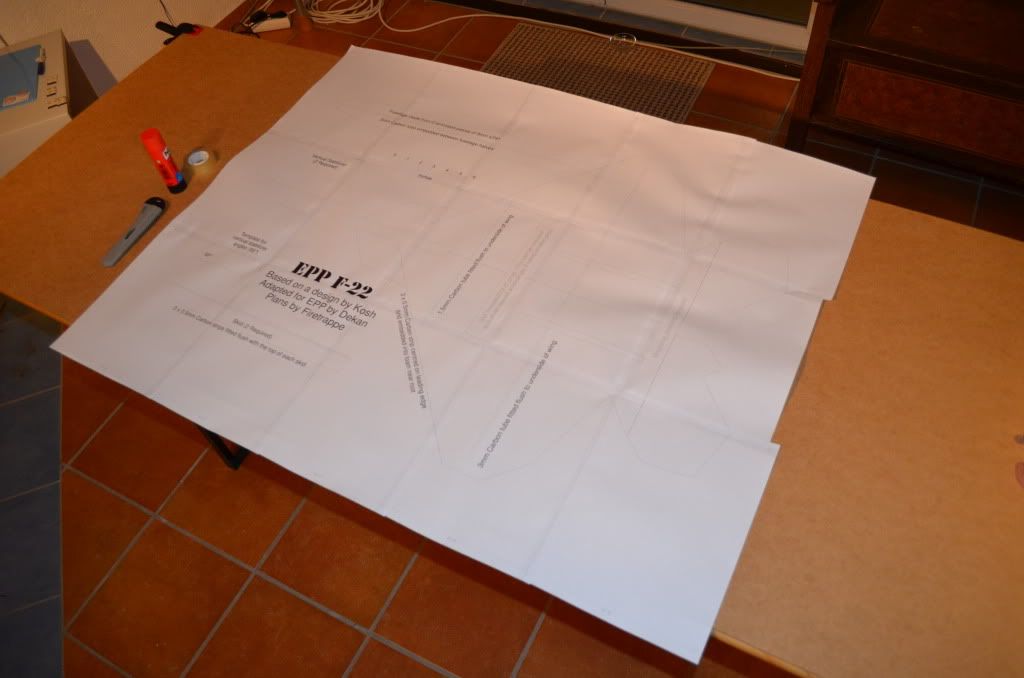

If anyone is interested in the plans on this fun little plane check them out here.http://www.rcgroups.com/forums/showa...6&d=1189403380





.







Timewarp is offline
Old 12-04-2011, 01:35 AM
  #2
Fishbonez
Love my Stinger

Fishbonez's Avatar

Join Date: Apr 2011
Location: Wyoming
Posts: 2,951
Default

Looks very cool
Enjoy and have a ton of fun
Fishbonez is offline
Old 12-04-2011, 05:54 AM
  #3
CHELLIE
Super Contributor

CHELLIE's Avatar

Join Date: Oct 2006
Location: Hesperia, So. Calif
Posts: 19,264
Default

Very nice, Now your hooked
CHELLIE is offline
Old 12-04-2011, 11:46 AM
  #4
max2112
Super Contributor

max2112's Avatar

Join Date: Aug 2006
Location: Huntsville, AL
Posts: 1,550
Default

She looks good, Timewarp! It was a joy to watch you nail the maiden flight. Job well done on your first build.

You'll be ready for a 107" electrified B-17 before you know it.
max2112 is offline
Old 02-11-2012, 03:43 PM
  #5
aerobock
New Member

Join Date: Sep 2011
Posts: 5
Default

Well done. Nice to see.
aerobock is offline
Old 02-11-2012, 09:15 PM
  #6
Timewarp
Member
Thread Starter

Timewarp's Avatar

Join Date: Dec 2011
Location: Stationed with my family in Kaiserslautern, Germany
Posts: 46
Default

Originally Posted by aerobock View Post
Well done. Nice to see.
Thanks!

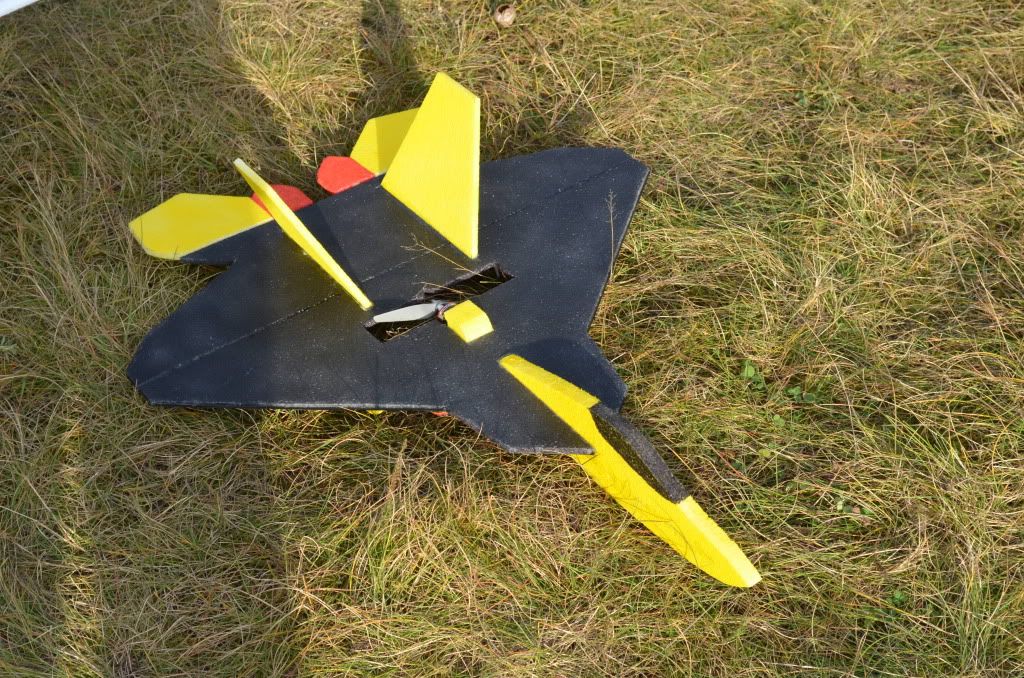

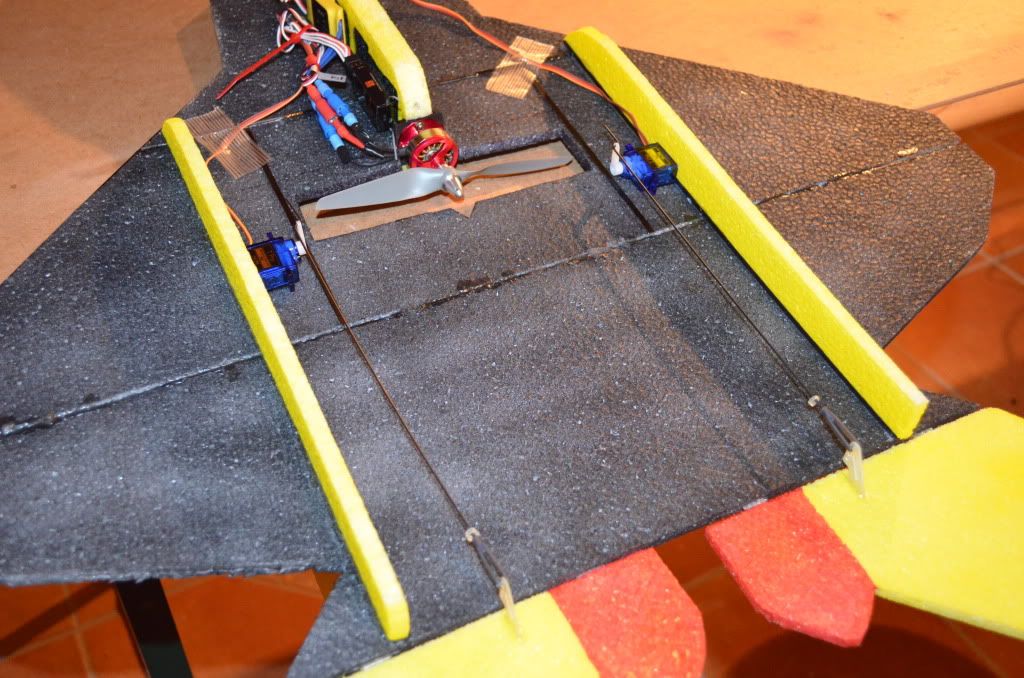

Since the build I have added a few mods to help protect the electronics. I added a middle fin and two short tail fins as well to the underside of the fuselage. I reinforced them with zip-strips and epoxy, now I can land and I don't have to worry about digging grass or mud out of the electronics and servos.
Attached Thumbnails Click image for larger version

Name:	00215 (2)-400.jpg
Views:	376
Size:	9.2 KB
ID:	157175   Click image for larger version

Name:	00215 (3)-400.jpg
Views:	363
Size:	9.8 KB
ID:	157176   Click image for larger version

Name:	00215 (4)-400.jpg
Views:	415
Size:	10.1 KB
ID:	157177   Click image for larger version

Name:	00215 (5)-400.jpg
Views:	394
Size:	15.8 KB
ID:	157178   Click image for larger version

Name:	00215 (6)-400.jpg
Views:	382
Size:	7.8 KB
ID:	157179

Click image for larger version

Name:	00251 (1)-400.jpg
Views:	262
Size:	11.9 KB
ID:	157180   Click image for larger version

Name:	00251 (2)-400.jpg
Views:	244
Size:	9.2 KB
ID:	157181   Click image for larger version

Name:	00251 (3)-400.jpg
Views:	225
Size:	8.7 KB
ID:	157182   Click image for larger version

Name:	00251 (4)-400.jpg
Views:	247
Size:	8.3 KB
ID:	157183   Click image for larger version

Name:	00251 (8)-400.jpg
Views:	224
Size:	7.8 KB
ID:	157184

Timewarp is offline
